Borrow
Select an authorised item and follow the cabinet prompts to collect it.
Product portfolio

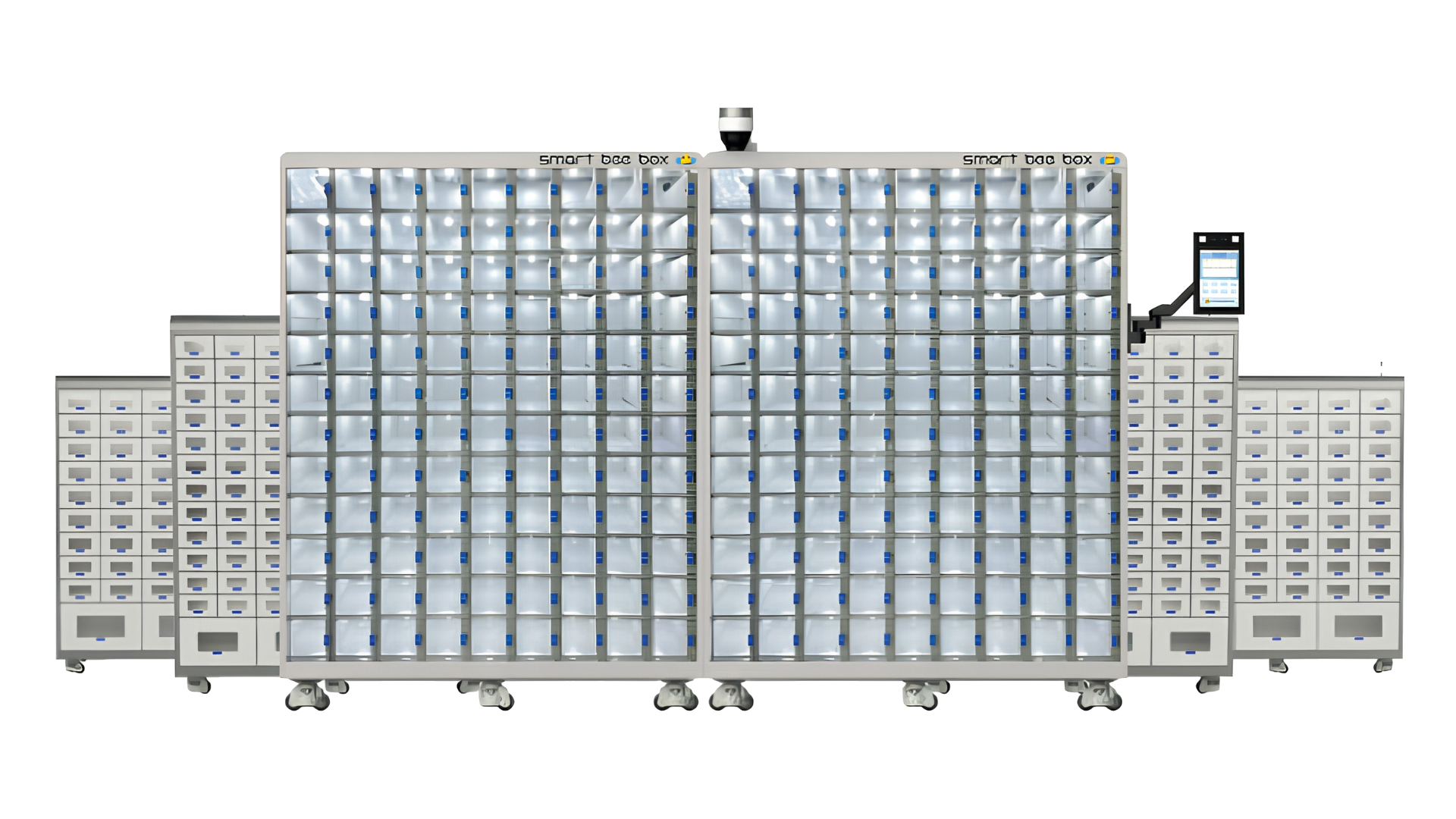

Smart lockers / T57 · T100 · T108
2 in 1 Tools and Consumable Management
Origo and Combi manage returnable tools and consumables such as PPE in one connected system. Track tools from issue to return, and monitor consumable usage and stock through the cabinet touchscreen and web management platform.
57 / 100 / 108compartment choices
15.6″touchscreen interface
2 in 1tools and consumables
24/7controlled access
Operating demonstrations
Borrow. Return. Keep work moving.
See how operators collect an item and return it to its assigned compartment.
Return
Record the return and place the item in its assigned compartment.
Six unit functions
Secure access. Clear accountability.
Identify the user, trace the transaction and expand storage to suit the items your team works with.
01Controlled user access — Face ID
Identify authorised users by Face ID and apply individual permissions or withdrawal limits.
02Production-order control
Assign material usage and cost to a production order, job or department for clearer operational accountability.

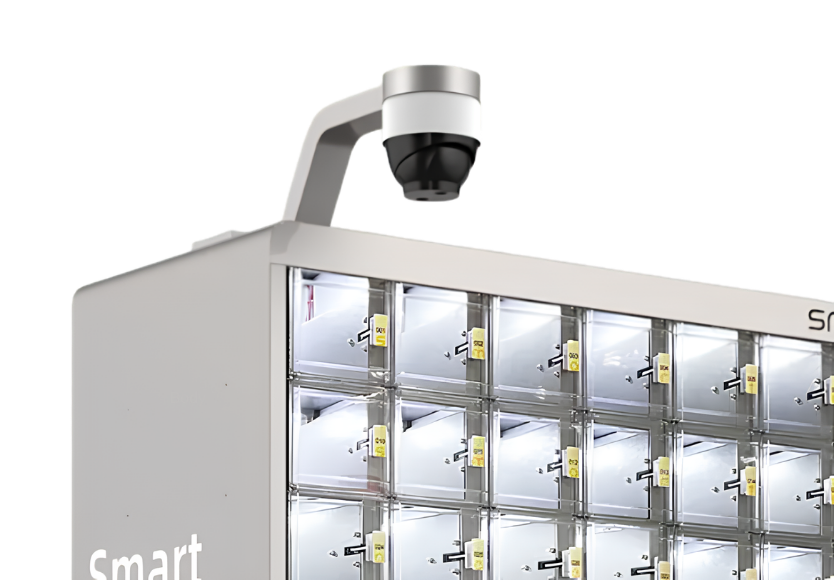

03HD camera — optional
An HD camera records the tool collection process, supporting security and review of item pickups.

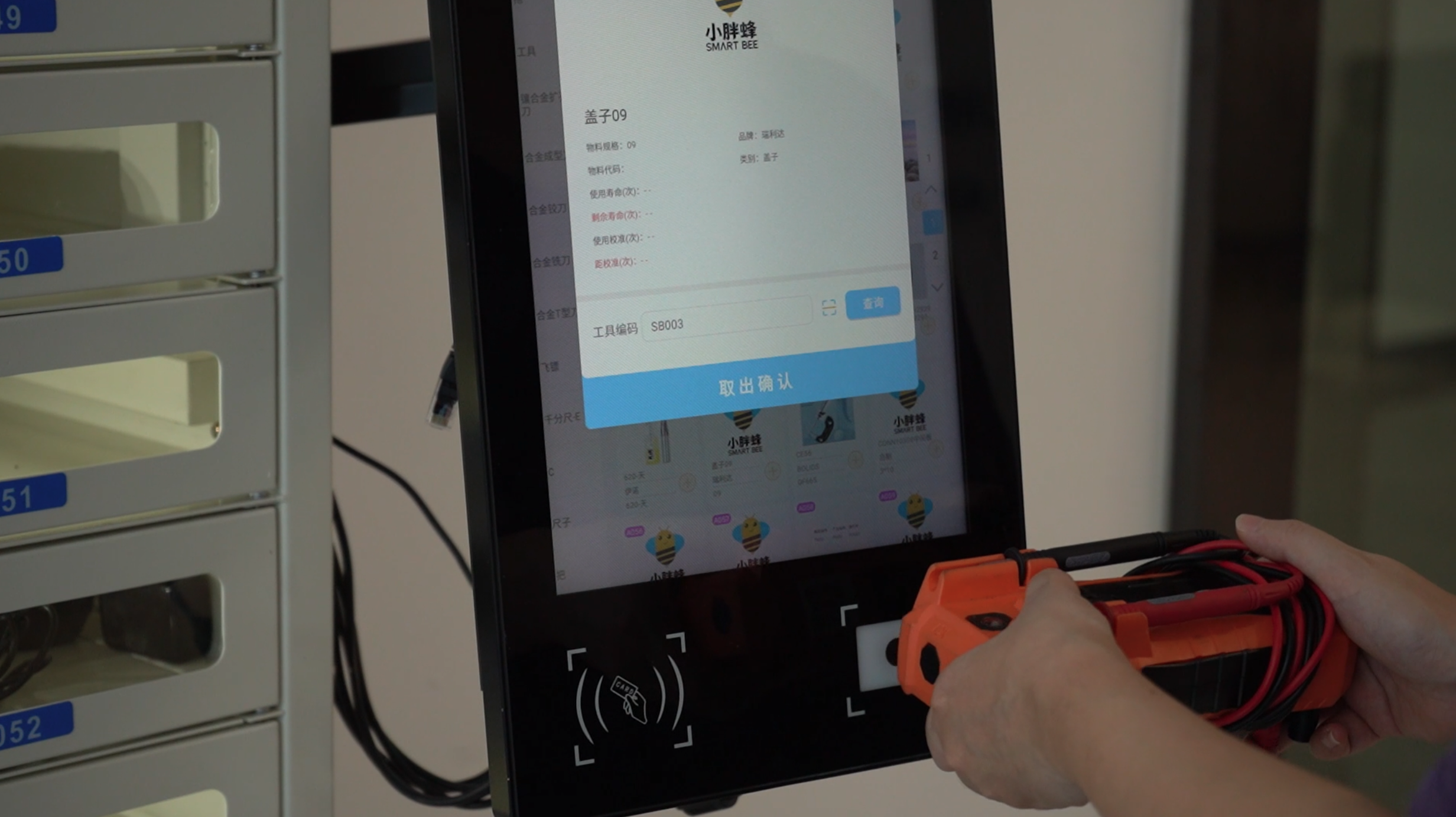

04QR scanner
Scan the item code during pickup and return to help verify the correct tool or material.
05RFID TraceStock — optional
Precise control of diverse, small-batch materials. Fully automated tracking of every material—from collection to return and confirmation.
06Mix-and-match expansion
Build a connected system of up to 10 lockers: one main unit plus nine expansion lockers. Mix TE57, TE100, TE108 and C64 to suit different item sizes.
Origo and Combi software capabilities
One platform. Two interfaces.
Connected inventory control.
The same software supports T57, T100, T108 and C64. Operators follow the cabinet touchscreen while managers oversee inventory and activity from the web.
Guide every item to the right user and location

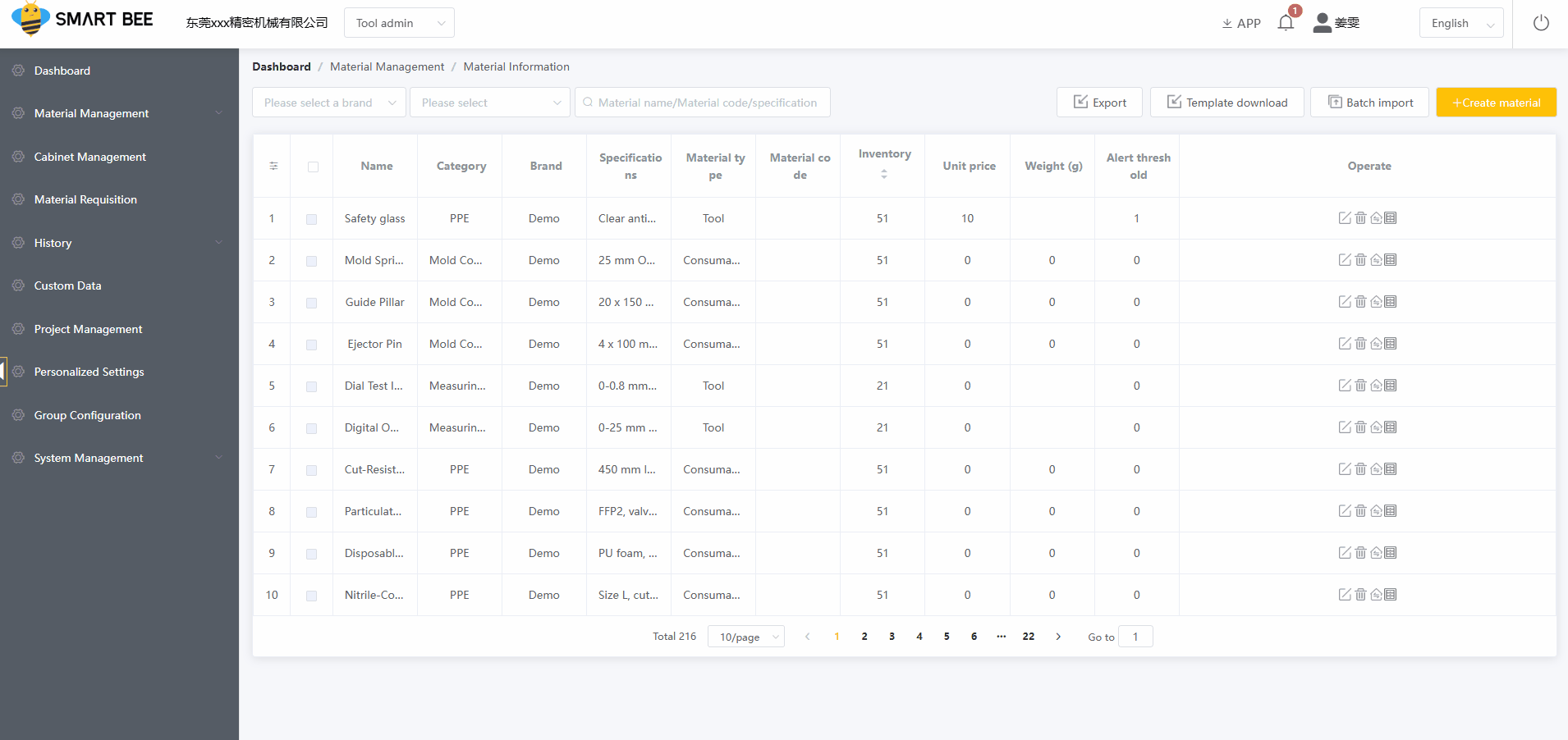

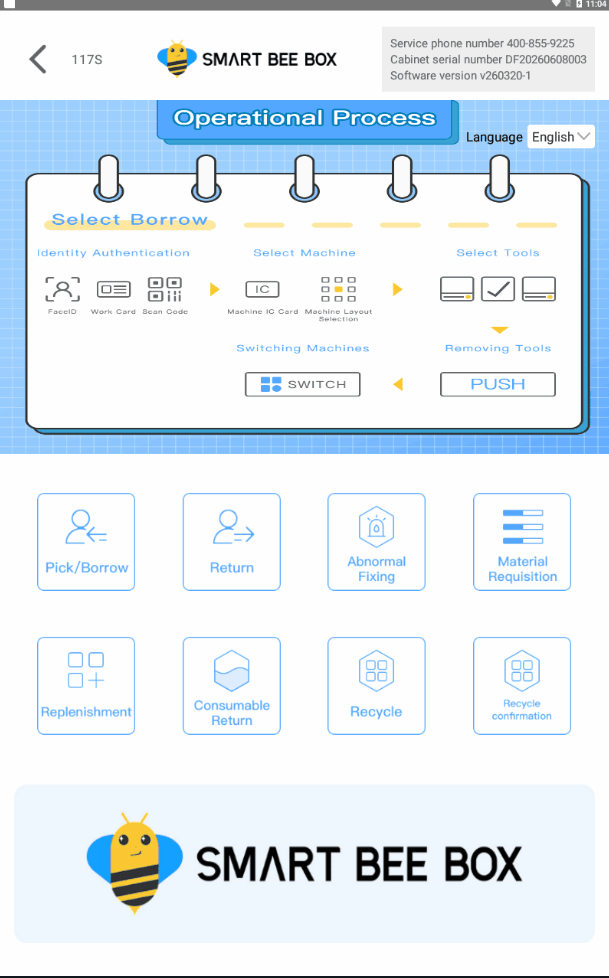

Guided material pickup and return
The system guides users through each pickup and return. Only the assigned compartment unlocks, helping operators collect the correct item and return it to the correct location.
- ✓Guided pickup and return workflow
- ✓Automatic unlocking of assigned compartments
- ✓Reduced wrong-item and wrong-location errors
- ✓Complete user and transaction records
TOOL CALIBRATION MANAGEMENT
Keep precision
on schedule.
From tool usage to calibration readinessThe right reminder.
The right reminder.
At the right interval.
Plan calibration around how each tool is used. Set the appropriate interval, notify your team and keep the records ready for review.
Usage countNumber of uses
Usage lengthAccumulated length
Operating hoursTime in use
Calendar daysScheduled intervals
Calibration alerts
Flag tools approaching their configured calibration interval so your team can plan ahead.
Email notifications
Notify the responsible personnel when calibration is due, helping keep follow-up on track.
Automatically generated reports
Bring calibration status and recorded history together for quality reviews and audit preparation.
Support your ISO 9001 quality processes.
Organised calibration records help support equipment control and audit preparation within your quality management system.
Reports support documentation; calibration and verification must still follow your organisation’s procedures. Usage-based intervals depend on the activity data recorded or integrated with the system.Origo and Combi inventory management
Tools to return.
Materials to keep moving.
One platform for everything your team borrows, uses and replenishes. Connected from the cabinet touchscreen to the web dashboard.
Keep every tool accountable.
Track who has each tool, when it is due back and when it returns to storage.
Hand toolsMeasuring instrumentsProduction equipment
Identify → Borrow → Return
Control the materials you consume.
Record each issue and replenishment, monitor remaining quantities and plan the next restock.
Fasteners & screwsElectronic componentsCutting insertsRaw materialsPPE & supplies
Identify → Collect → Replenish
Expiry Management
Track material expiry dates and receive automated alerts before stock expires. Plan timely use or replacement to help reduce material waste.

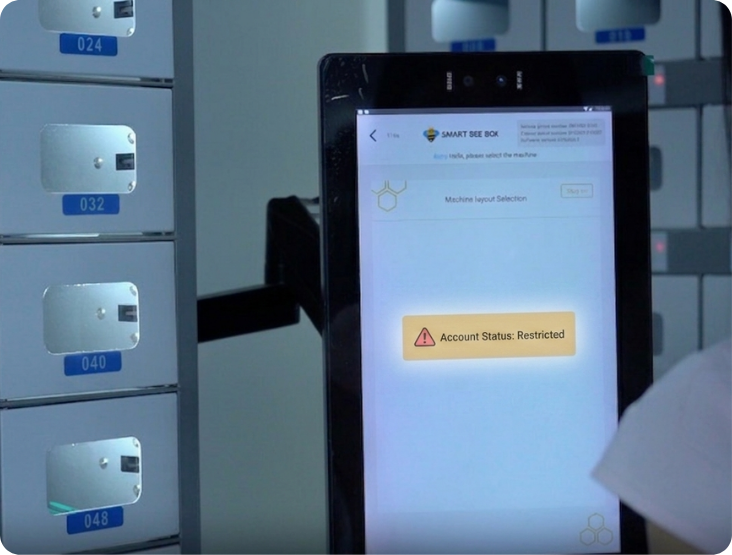

Overdue Restriction
Restrict further borrowing when tools are overdue, according to configured rules. Encourage timely returns and keep responsibility for borrowed items clear.

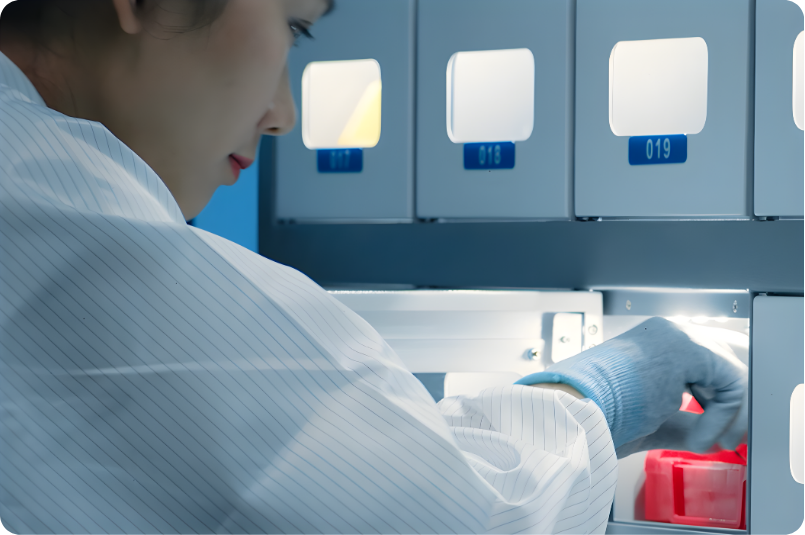

Preventive Maintenance & Calibration
Receive automated calibration reminders for tools and measuring instruments. Help your team plan maintenance and keep track of items due for attention.

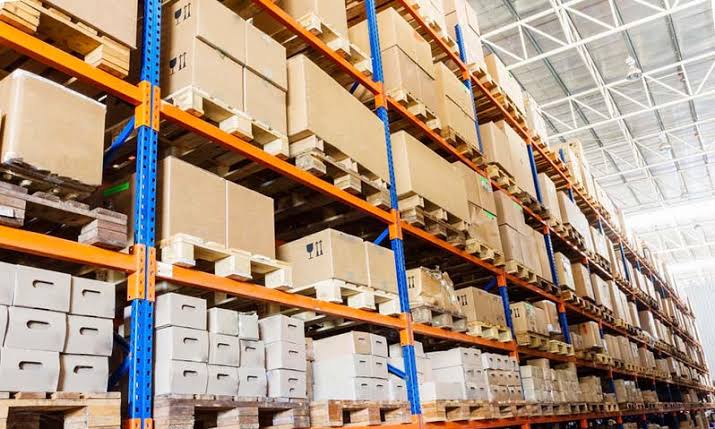

Slow-Moving Stock Monitoring
Identify materials with little or no recent usage. Review stock levels and purchasing decisions to help reduce excess inventory.
Fast Stocktake & Reports
Speed up inventory checks and automatically generate stocktake reports. Compare counted quantities with system records and review stock differences.
Recycle Management
Record items collected for recycling and confirm their receipt. Keep a traceable record of used materials as they move from collection to recycling handling.
Models and technical specifications
Choose the compartment mix that fits.
Origo offers three fixed compartment layouts. Combi C64 adds adjustable compartment sizes, with the same connected software.
| Specification |  | | | |
|---|---|---|---|---|
| Compartment count | 57 | 100 | 108 | 64 base compartments |
| Overall dimensions (H × W × D) | 1933 × 1600 × 500 mm | 1933 × 1600 × 500 mm | 1933 × 1450 × 500 mm | 1910 × 1372 × 500 mm |
| Touchscreen | 15.6-inch | 15.6-inch | 15.6-inch | 15.6-inch |
| Authentication | Face recognition + card | Face recognition + card | Face recognition + card | Face recognition + card |
| Expansion | Up to 9 expansion lockers | Up to 9 expansion lockers | Up to 9 expansion lockers | Up to 9 expansion lockers |
| QR scanner / HD camera | Standard / Optional | Standard / Optional | Standard / Optional | Standard / Optional |
| Regular compartment (H × W × D) | 54 regular · 132 × 234 × 400 mm | 96 regular · 100 × 170 × 400 mm | 108 compartments · 120 × 120 × 400 mm | 64 base compartments · 90 × 251.5 × 400 mm |
| Large compartment (H × W × D) | 3 large · 290 × 492 × 400 mm | 4 large · 234 × 364 × 400 mm | — | Combine 2, 3 or 4 base compartments |
| Physical compartment resizing | Fixed layout | Fixed layout | Fixed layout | 1-in-1 to 4-in-1 configurations |
| Software | Origo & Combi platform | Origo & Combi platform | Origo & Combi platform | Origo & Combi platform |
Compartment dimensions are shown as height × width × depth. Counts refer to the standard layout; combining C64 compartments reduces the number of separate storage spaces.

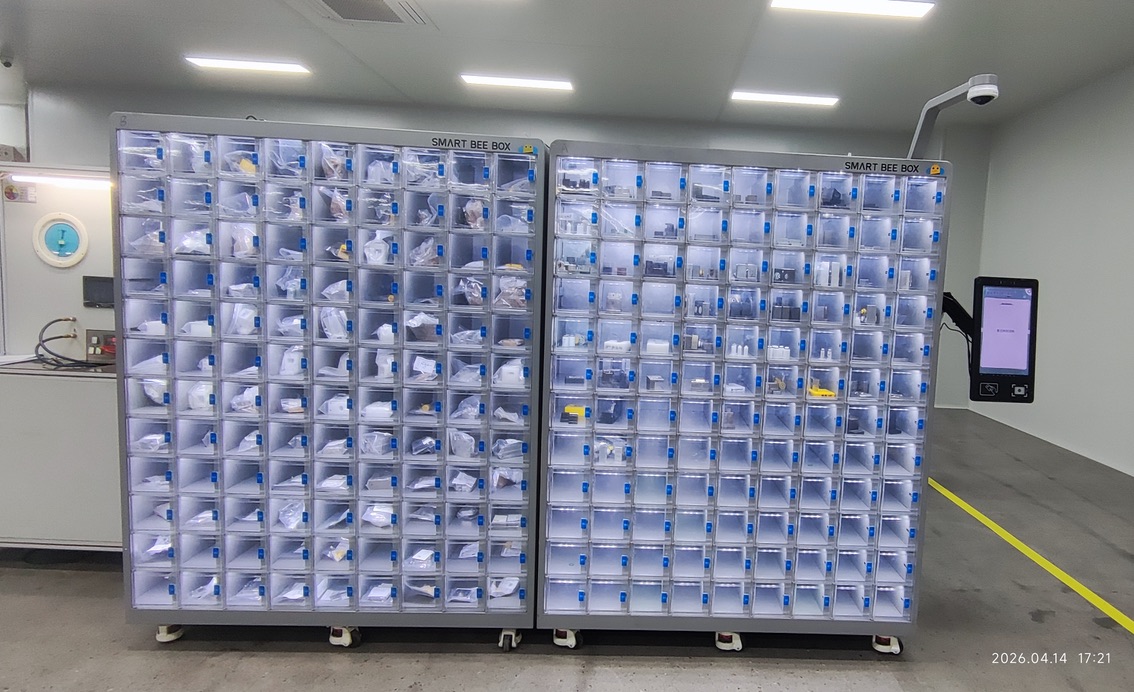

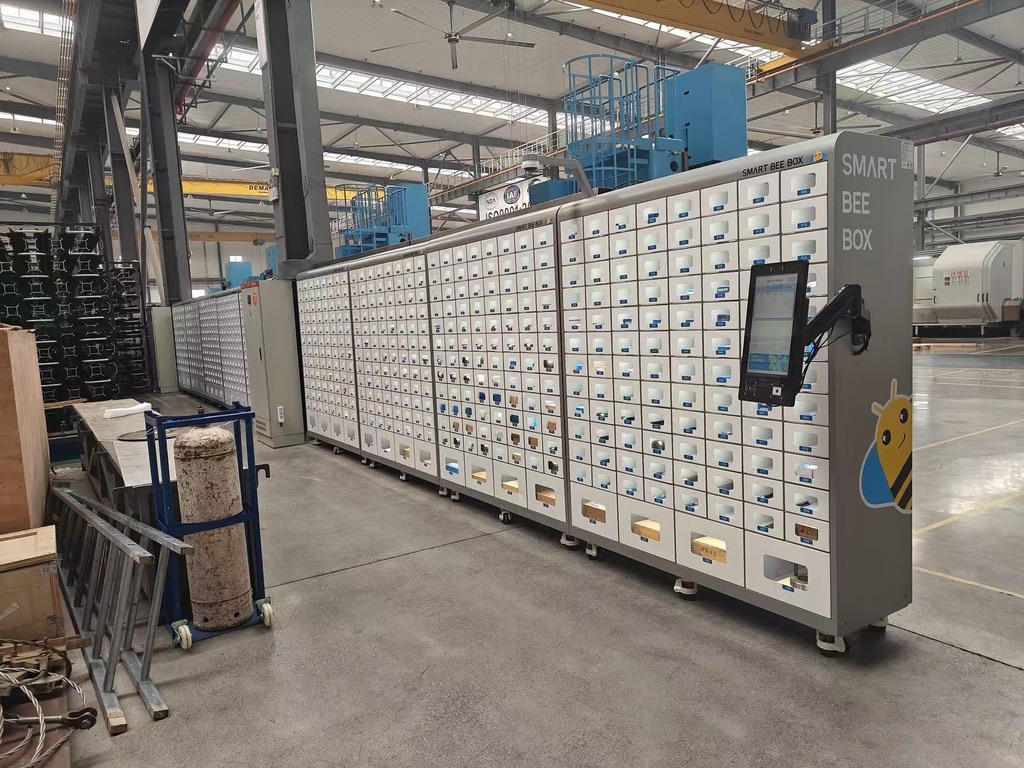

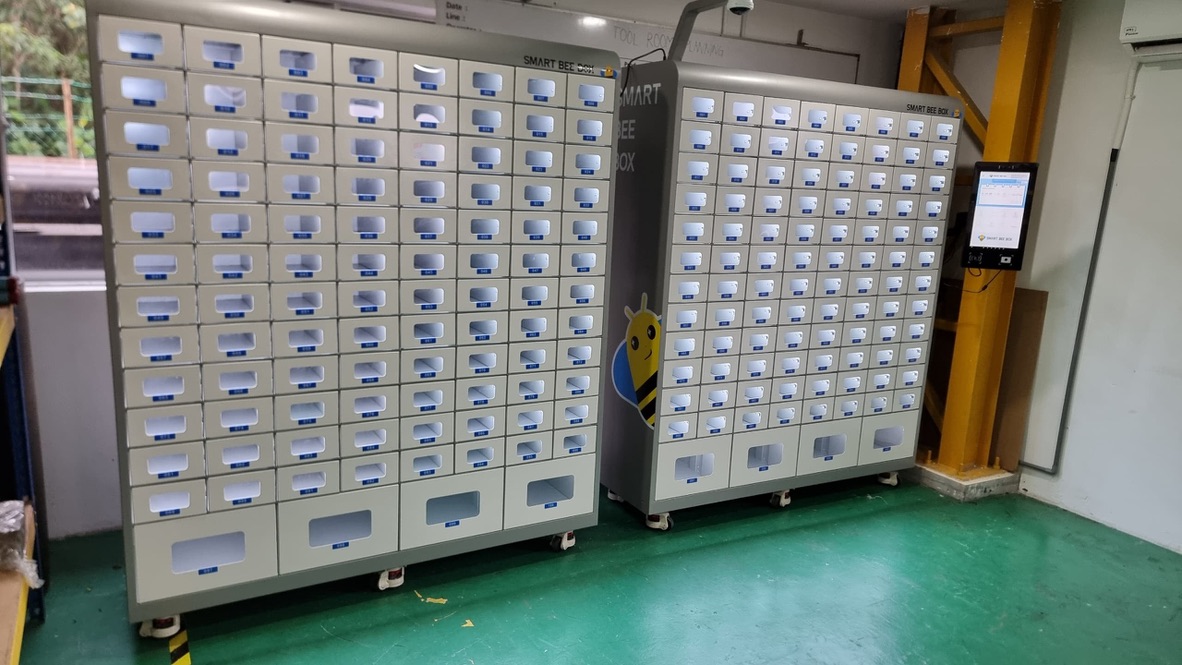

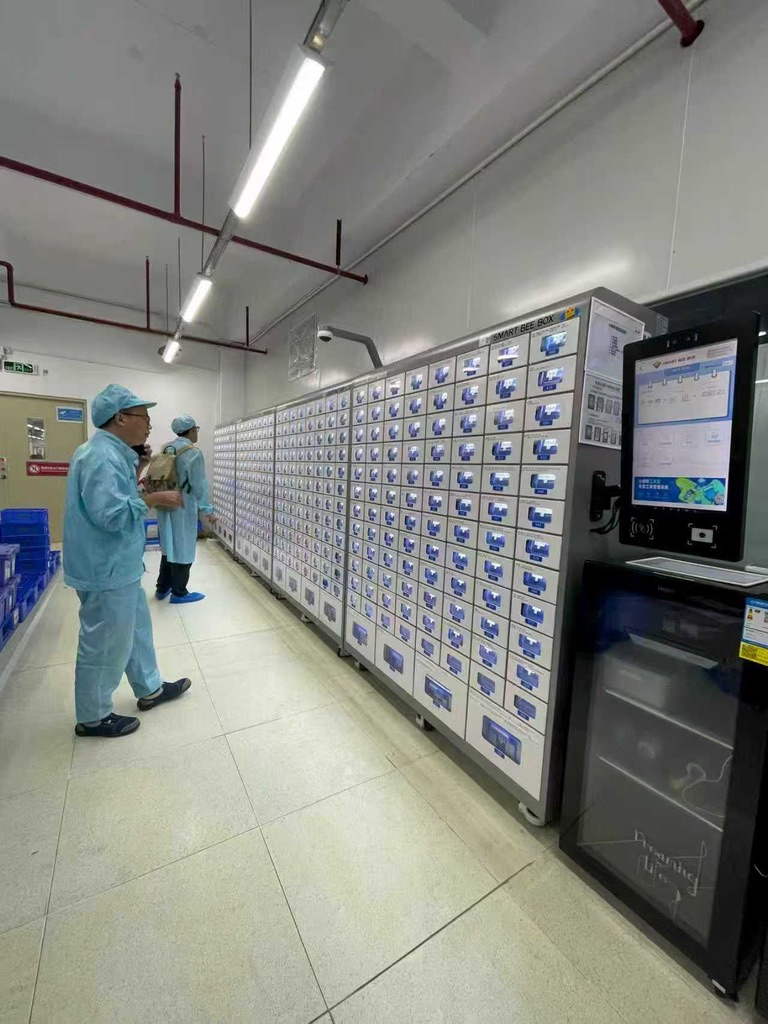

Origo site installations
Connected storage.
At work on site.
See Origo installed in working environments, from factory-floor storage to dedicated material rooms.
